TECHNICAL DATA
The geometry , dimensions and tolerances of the N'AKRON SD1-A connectors are represented in the accompanying figures. The shape of the base is slightly concave with rounded edges (A ) and is finished with flux in the form of aluminum ball fixed by pressure, which, when arc melt , it cleans and deoxidize the surface area of the metal base .
The dimensions of the ceramic ferrules which are used as auxiliary element for welding are designated below .
N’AKRON NA1-A SHEAR CONNECTOR

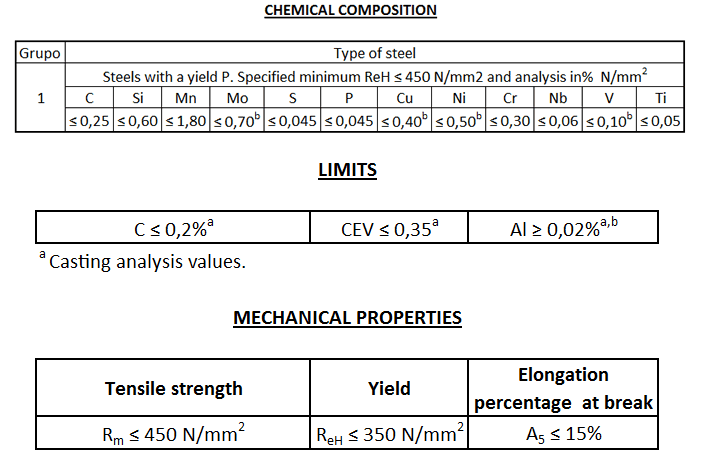

The connectors are manufactured and dimensioned according to the European standard EN ISO 13918:2008 . The material used to manufacture is steel group 1 , according to the UNE- CEN ISO / TR 15608 IN ,the cluster of steel and the limits are in Tables |
|
|
|
